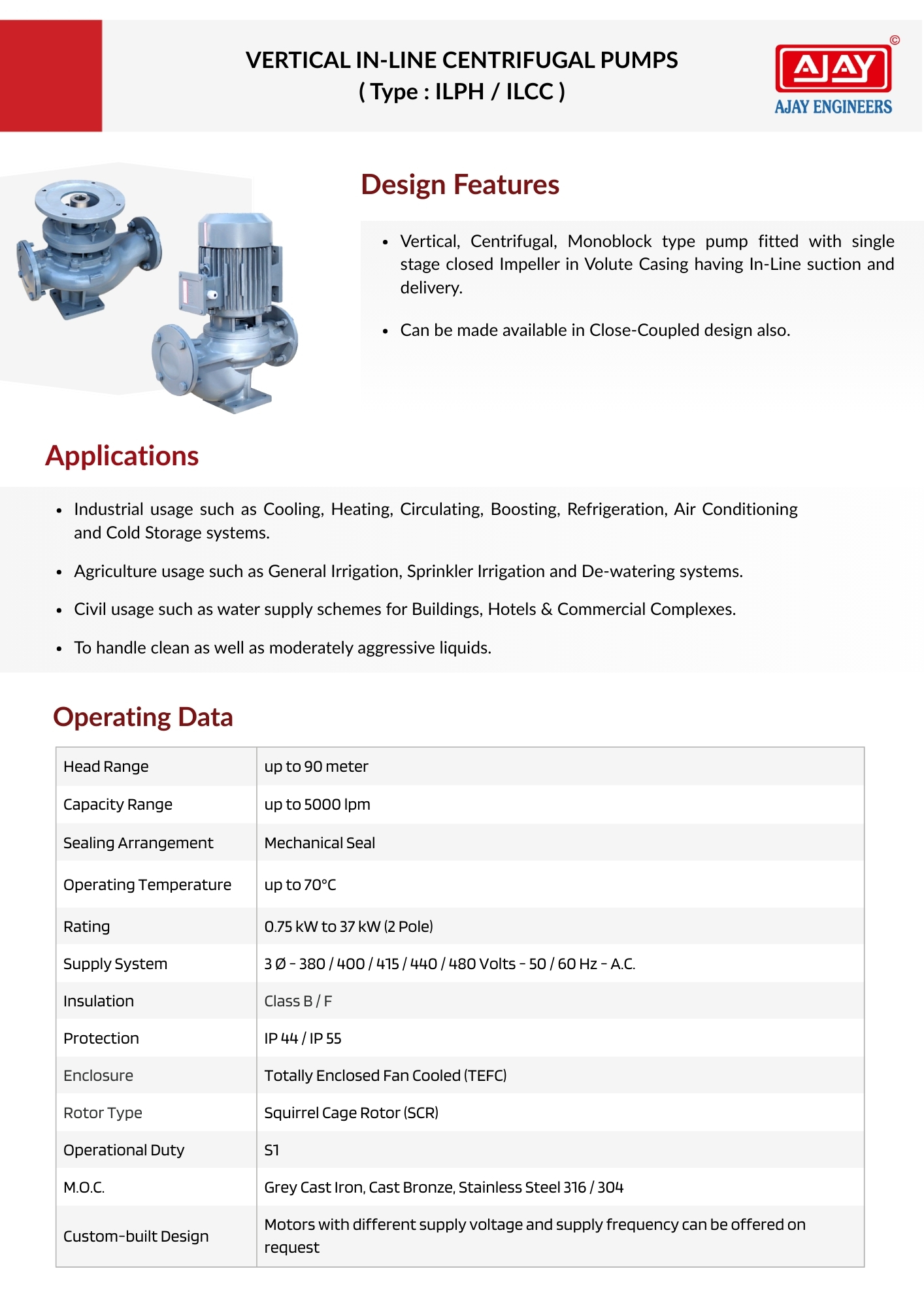

VERTICAL IN-LINE CENTRIFUGAL PUMPS

  • Type :   ILPH
end-suction-centrifugal-process-pumps
Design Features
  • Vertical, Centrifugal, Monoblock (unibuilt) type pump fitted with single stage closed Impeller in Volute Casing having In-Line suction and delivery.
  • Can be made available in Close-Coupled design also.
Applications
  • Industrial usage such as Cooling, Heating, Circulating, Boosting, Refrigeration, Air Conditioning and Cold Storage systems.
  • Agriculture usage such as General Irrigation, Sprinkler Irrigation and De-watering systems.
  • Civil usage such as water supply schemes for Buildings, Hotels & Commercial Complexes.
  • To handle clean as well as moderately aggressive liquids.
Operating Data
Head Range up to 88 meter
Capacity Range up to 4000 lpm
Sealing Arrangement Mechanical Seal
Operating Temperature up to 70°C
Rating 0.75 kW to 30 kW (2 Pole)
Supply System 3 Ø - 380 / 400 / 415 / 440 / 480 Volts - 50 / 60 Hz - A.C.
Insulation Class B / F
Protection IP 44 / 55
Enclosure Totally Enclosed Fan Cooled (TEFC)
Rotor Type Squirrel Cage Rotor (SCR)
Operational Duty S1
M.O.C. Grey Cast Iron, Bronze, Stainless Steel SS 316 / 304
Custom-built Design Motors with different supply voltage and supply frequency can be offered on request.
