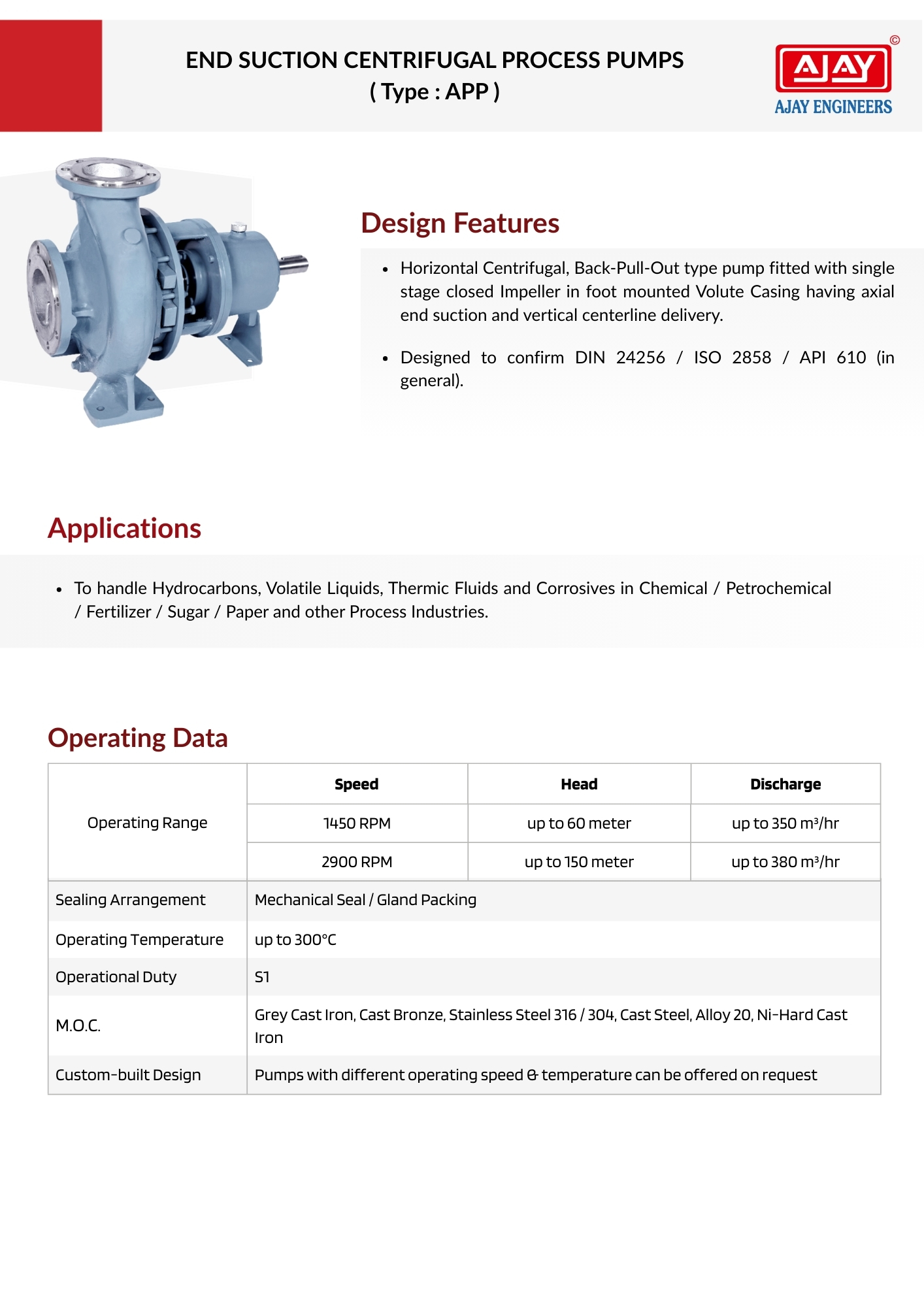

Horizontal Centrifugal, Back-Pull-Out type pump fitted with single stage closed Impeller in foot mounted Volute Casing having axial end suction and Vertical centerline delivery.
Designed to confirm DIN 24256 / ISO 2858 / API 610 (in general).
Applications
To handle Hydrocarbons, Volatile Liquids, Thermic Fluids and Corrosives in Chemical / Petrochemical / Fertilizer / Sugar / Paper and other Process Industries.
Operating Data
Operating Range
Speed
Head
Discharge
1450 RPM
up to 60 meter
up to 350 m³/hr
2900 RPM
up to 150 meter
up to 380 m³/hr
Sealing Arrangement
Mechanical Seal / Gland Packing
Operating Temperature
up to 300°C
Operational Duty
S1
M.O.C.
Grey Cast Iron, Bronze, Stainless Steel SS 316 / 304, Cast Steel, Alloy 20, Ni-Hard Cast Iron
Custom-built Design
Pumps with different operating speed & temperature can be offered on request.
