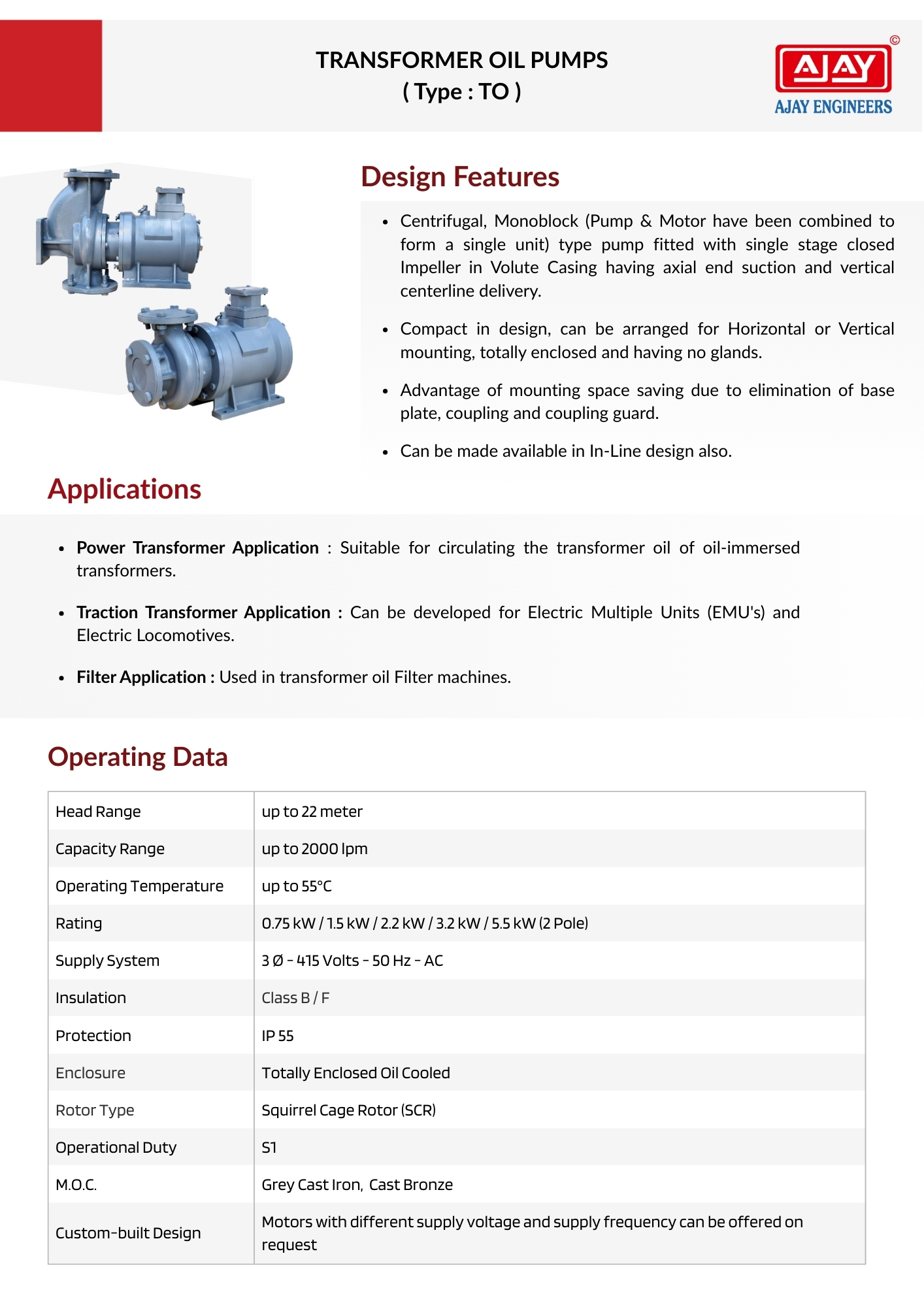

TRANSFORMER OIL PUMPS

  • Type :   TO
end-suction-centrifugal-process-pumps
Design Features
  • Centrifugal, Monoblock (Pump & Motor have been combined to form a single unit) type pump fitted with single stage closed Impeller in Volute Casing having axial end suction and vertical centerline delivery.
  • Compact in design, can be arranged for Horizontal or Vertical mounting, totally enclosed and having no glands.
  • Advantage of mounting space saving due to elimination of base plate, coupling and coupling guard.
  • Can be made available in In-Line design also.
Applications
Power Transformer Application
  • Suitable for circulating the transformer oil of oil-immersed transformers.
Traction Transformer Application
  • Can be developed for Electric Multiple Units (EMU's) and Electric Locomotives.
Filter Application
  • Used in transformer oil Filter machines.
Operating Data
Head Range up to 22 meter
Capacity Range up to 2000 lpm
Operating Temperature up to 55°C
Rating 0.75 kW / 1.5 kW / 2.2 kW / 3.2 kW / 5.5 kW (2 Pole)
Supply System 3 Ø - 415 Volts - 50 Hz - AC
Insulation Class B / F
Protection IP 55
Enclosure Totally Enclosed Oil Cooled
Rotor Type Squirrel Cage Rotor (SCR)
Operational Duty S1
M.O.C. Grey Cast Iron, Bronze
Custom-built Design Motors with different supply voltage and supply frequency can be offered on request.
